NanoPump(Sanitary Stainless)纳米泵

品牌：Genizer

型号：NanoPump

产地：美国


  • 技术参数
  • 性能特点
  • 应用范围
  • 相关下载

Specifications
Catalog No.NanoPump-1500NanoPump-1000NanoPump-800 NanoPump-600NanoPump-300
Flow rate6L/hr8L/hr10L/hr18L/hr30L/hr
Min. Volumn20mL20mL20mL50mL100mL
Max. Pressure1500bar 1000bar800bar600bar300bar
Dimensions(cm)75 × 40 × 3575 × 40 × 3575 × 40 × 3575 × 40 × 35 75 × 40 × 35
Weight40 kg (85 lbs)40 kg (85 lbs)40 kg (85 lbs)40 kg (85 lbs)40 kg (85 lbs)
Max. Temp.80ºC (176ºF)
Power110V/220V
CleaningFlush to clean/CIP/SIP
ApplicationStainless pump, sanitary pumping of the liquid in pharmaceutical or biological applications
FeaturesDigital display of pressure or pressure gauge

Standard Features
Parts1 Diamond interaction chamber
Control SystemHigh pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 1 mL, display of flow rate and time, overload protection
Pressure GaugeElectric
Inlet Type1" tri-clamp
Outlet Type1" tri-clamp

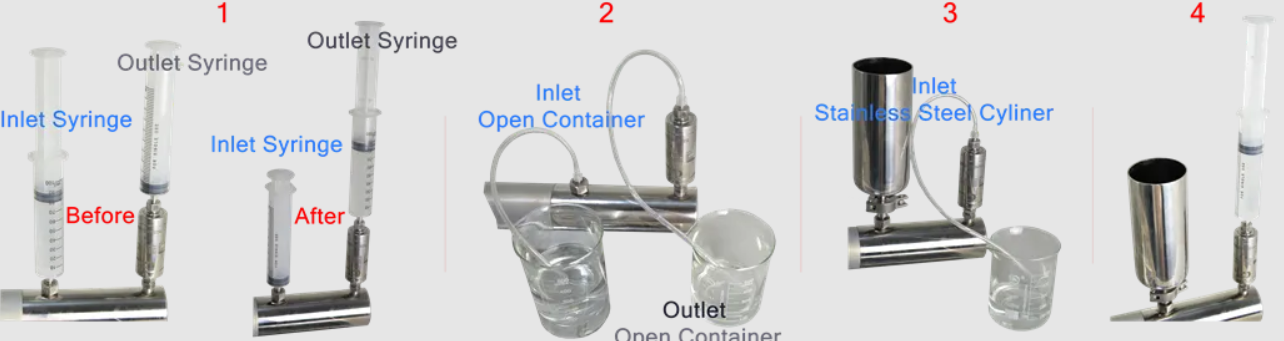

Inlet Reservoir50mL/100mL/200mL/500mL syringe; 500mL/1L/2L stainless cylinder
Outlet Reservoir50mL/100mL/200mL/500mL syringe; 500mL/1L/2L stainless cylinder
Product Material316L stainless steel, tungsten carbide, viton, teflon
Material StandardSanitary grade, FDA, GMP
Warranty1 year against any manufacturing defects

Option Features
PartsHigh pressure extruders, homogenizing valves, heat exchanger
Control SystemTradition mechanical controls: speed, start, stop control; FDA 21CFR Compliance; Explosion-Proof
DetectorPressure gauge, pressure transducer, temperature transducer
Outlet Type2" tri-clamp or luer
Inlet Reservoir10mL, 20mL, 50mL, 100mL, 200mL, 500mL syringe, tank or online
Outlet Reservoir10mL, 20mL, 50mL, 100mL, 200mL, 500mL syringe, tank or online
CylinderTitanium high pressure cylinder (resistant to strong acid and base)

描述：

配备2000巴的卫生活塞泵，配备电力和可控流量。


性能：

小型（集成设计实现轻便和小尺寸）
智能（编程控制系统提供勤勉功能）
静音（无噪音性能且高能效）
强劲（300巴压力下超过30升/小时）
符合CE和RoHS标准





应用：

液体的卫生输送
脂质体挤出中的压力泵
